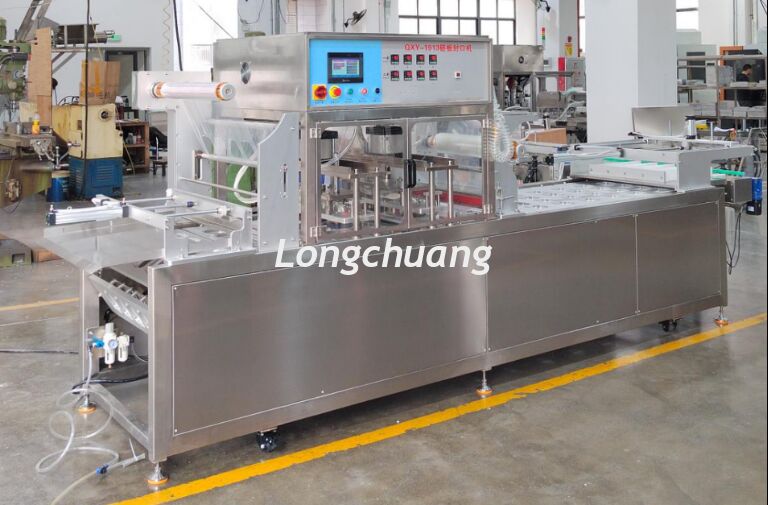

LC-QXY-1913 Fully Automatic Vucuum Disc Chain Plate Filling And Sealing Machine

LC-672CF Fully Automatic Vucuum Disc Filling and Sealing Machine

This machine is a fully automatic disc filling and sealing machine developed according to customer requirements. It can be equipped with a bottle unscrambler or bottle washer at the front end, and a capping machine and labeling machine at the rear end, forming a production line that requires no manual operation, saving manpower and improving production efficiency.

The sealing film can be either roll film or sheet film, either option is available. It automatically drops cups, automatically heat-seals them, leaves a coding signal, and automatically conveys the cups out, saving manpower. It can seal four or more cups at a time, with the quantity selected according to needs, greatly improving production efficiency.

Functions and Configuration:

1. One-outlet-two-outlet

2. Production Speed: One-outlet-two-outlet: 1000-1200 cups/hour. Workflow: Automatic cup dropping, automatic material     filling (submersible filling), with a storage hopper; automatic material replenishment when the hopper is empty (optional), automatic heat sealing, automatic cup dispensing.

3. Filling Accuracy: ±1%

4. Filling Material Range: Liquids, emulsions, pastes.

5. Filling Method: Stainless steel 316 servo pump.

6. Can be connected to production lines; front-end can be equipped with a bottle unscrambler or bottle washing machine, rear-end can be equipped with a capping machine and labeling machine, etc., unmanned operation, saving manpower and improving production efficiency.

7. Delta PLC program control, stable and reliable; human-machine interface is a touch screen for easy parameter adjustment and fault alarms.

8. Temperature adjustable range: room temperature - 300 degrees Celsius, classic digital display temperature controller, temperature difference ±5 degrees Celsius, excellent sealing effect.

9. Equipped with fault alarm and temperature alarm functions to ensure sealing effect.

10. Taiwan photoelectric eye tracking, integrated electrical system.

11. Sealing materials: Any heat-bonding plastic composite film or aluminum foil composite film that matches the bottle material is acceptable, such as composite PP, composite PE, composite PET, composite PS, etc.

12. Air pressure range: 4-8KG/CM2

13. Power: 1000-2000W

14. Voltage: 220V, 110V or other voltages can be customized according to customer needs

15. Machine appearance: 304 stainless steel

16. Machine dimensions: 2400*1400*1750MM

17. Net weight: 665KG ( This is a reference value; the actual weight may vary for customized products)

18. Packaging: Wooden frame

19. Accessories: Tool box, instruction manual, Allen wrench, Phillips screwdriver.

Payment Method:

After the contract is signed, 50% of the total contract amount will be paid as a deposit.

The remaining 50% can be paid after the equipment is completed and can be inspected on-site or confirmed by video.

After the equipment is inspected and qualified, the payment will be released and the equipment will be delivered.

Production time:

20-35 working days

Warranty Policy:

The machine is guaranteed for one year and provides lifetime service.
