Product Details
Place of Origin: CHINA
Brand Name: LONGCHUANG
Certification: CE, ISO9001
Model Number: LC-160D
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 7-25 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets/month
Material: |
304SS, 304 Food Grade Stainless Steel |
Usage: |
Rooibos TeaBag Packaging Machine |
Application: |
Rose Teabag Packaging Machine |
Function: |
Nylon Triangle Chrysanthemum Tea Bag Packaging Machine |
Condition: |
Tea Leaves Tea Bag Packaging Machine |
Driven Type: |
Pneumatic, Electric |
Packaging Type:: |
Nylon Triangle Flower Tea Bag Packaging Machine |
Core Components: |
Motor, PLC, Engine, Weighers |
Name: |
Rooibos Teabag Packaging Machine |
Machine Name: |
Enzymatic Beverage Pouch Packaging Machine |
Type: |
Exquisite Chrysanthemum Teabag Packaging Machine |
Type1: |
Chrysanthemum Teabag Packaging Machine |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Packaging Type: |
Nylon Triangle Teabag Packaging Machine |
Certification: |
CE,SGS,ISO,ISO9001,CO |
Packing Speed: |
30-60bags/min,20-60 Bags/min |
Name: |
Tea Powder Doypack Filling And Packing Machine |
Material: |
304SS, 304 Food Grade Stainless Steel |
Usage: |
Rooibos TeaBag Packaging Machine |
Application: |
Rose Teabag Packaging Machine |
Function: |
Nylon Triangle Chrysanthemum Tea Bag Packaging Machine |
Condition: |
Tea Leaves Tea Bag Packaging Machine |
Driven Type: |
Pneumatic, Electric |
Packaging Type:: |
Nylon Triangle Flower Tea Bag Packaging Machine |
Core Components: |
Motor, PLC, Engine, Weighers |
Name: |
Rooibos Teabag Packaging Machine |
Machine Name: |
Enzymatic Beverage Pouch Packaging Machine |
Type: |
Exquisite Chrysanthemum Teabag Packaging Machine |
Type1: |
Chrysanthemum Teabag Packaging Machine |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Packaging Type: |
Nylon Triangle Teabag Packaging Machine |
Certification: |
CE,SGS,ISO,ISO9001,CO |
Packing Speed: |
30-60bags/min,20-60 Bags/min |
Name: |
Tea Powder Doypack Filling And Packing Machine |
LC-NT-6 Nylon Triangle Rooibos TeaBag Packaging Machine Nylon Triangle Rooibos Teabag Packaging Machine
If you need more machine details and videos , pls contact us directly.
Contact: Ms Mia
Whatsapp/Wechat/Tel :0086 17076540068
Email: mia.longchuang@foxmail.com
1. Application:
Nylon triangle tea bag packing machine, specially design for PYRAMID/RECTANGULAR tea bag packing, it is widely applied to different kind of herbal tea , loose tea leaves, flower tea, fruit tea and blending tea , such as green tea, black tea dendranthema morifolium, rose, oolong tea, yellow tea, white tea ect.
2. Technical parameter:
| Main machine parameter | LC-NT-4 | LC-NT-6 | LC-NT-8 |
| Speed | 20-30bags/min | 30-40bags/min | 30-50bags/min |
| Bag-making size |
60-80(W)*40-80(L)mm |
60-80(W)*40-80(L)mm |
60-80(W)*40-80(L)mm |
| Bag-making type | Self -standing bags, self -standing zipper bags, self -bottomed bags, back -sealing bags, zipper bags, with sucking self -standing bags, etc | ||
| Filling range | 1-8g |
1-8g |
1-8g |
| Max bag width |
120mm,140mm,160mm |
120mm,140mm,160mm |
120mm,140mm,160mm |
|
Packaging Range |
2-10ml |
2-10ml |
2-10ml |
| film thickness | 0.04-0.06mm | 0.04-0.06mm | 0.04-0.06mm |
| bag material | Nylon, Polyester net non-woven fabrics,. ultrasonic sealing materials | ||
| Power |
220V 50HZ |
220V 50HZ | |
| Machine size | L1200*W920*H2060mm |
L1200*W920*H2060mm |
L1200*W920*H2060mm |
| Air compressor |
No less than 1 cube |
No less than 1.5 cube | No less than 2 cube |
| Remarks | could be customed according customers requirements | ||
4. Technical characteristics:
1.This unit can perform either three sides sealing and triangle teabag .just need single bond to change the bag between three sides sealing and triangle shape.
2.Applicable packing materials:Nylon film with thread and label.
3.Electronic scale metering can be collocated according to the material.
4.Human-Computer Interface,Omron PLC control.
5.Main motor overload protection device
6. Packaging material tension automatic adjustment device
7. The machine will automatically stop when Issued the warning.
5. FAQ:
Q1: How to find a Packing machine suitable for my product?
To Longchuang distinguished customers and friends , in order to we have an accurate and efficient communication, please kindly consult us and provide following details as possible as you could .
1-Packing products:
2-Packing weight:
3-Dimension of the bag :
4-Bag type:
5-Packing capacity:
If you have video or picture is very warm weclome.
For there are over 100 kinds of packing machine,different on bag sizes.
In order to recommend you the most suitable and best solution ,we need know these information.
Of course , if you are new and just start this business and don't have bag size , pls send us a sample picture or draft drawing)
, we can help you to find similar weight bag for your reference with our rich professional experience.
Q2: Can you send engineer service oversea?
Yes, and you need to pay some fee.
According to save your cost, we will send you a video of the installation of the machine.
Q3. How can we make sure about the machine's quality after we paid?
Before delivery, we will send you the pictures and videos of the machines.
And also you can visit our factory and test the machine.
Q4. We would like to have our own rand , is that ok ?
Yes, we accept OEM/ODM with your brand or your design.
Q5. Payment Method ?
1. 30% deposit, 70% before shipping.
2. We accept T/T, L/C etc.
Q6: Warranty
2 years for main parts after you received machines (Except the quick-wear parts)
Q7: About shipment:
You could designated freight logistics , we could also help for shipment by professionally .
6. Why Choose us ?

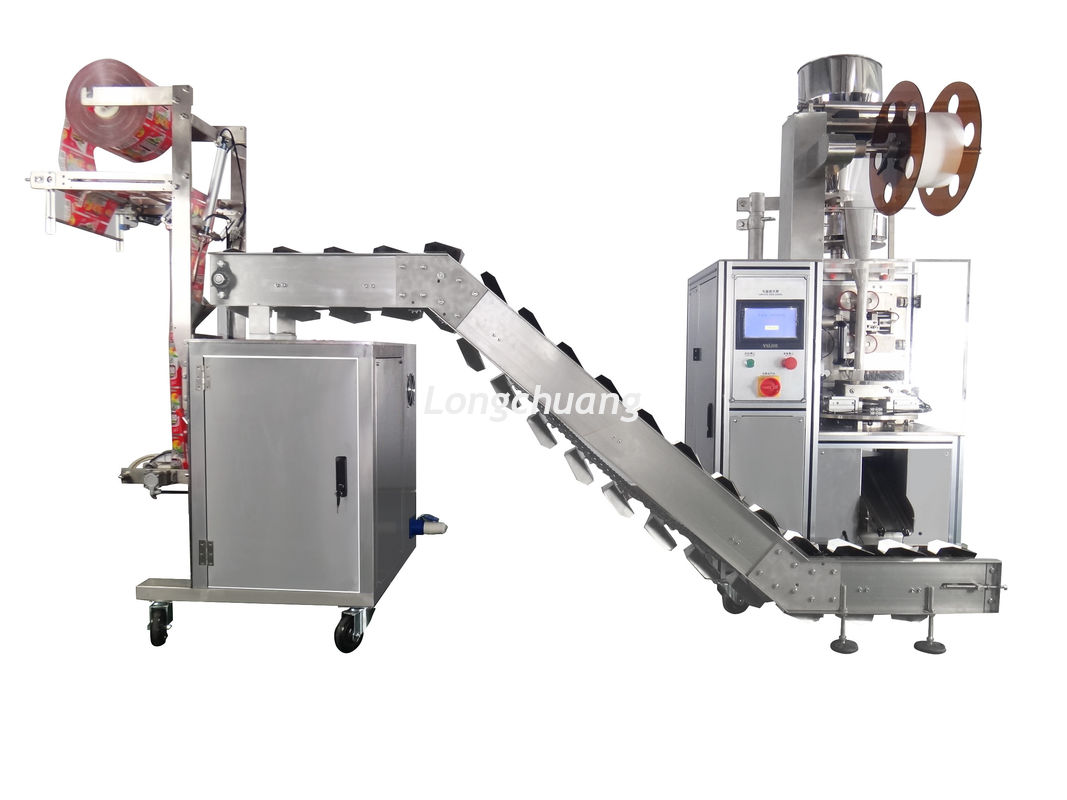

7. Machine picture:
8. Bag samples:
9. Customer reputation
