Automatic 100-5000ml Green Tea Powder Packaging Machine CE ISO9001

Product Details

Place of Origin: CHINA

Brand Name: LONGCHUANG

Certification: CE,ISO9001

Model Number: LC-420F

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: plywood case

Delivery Time: 7-25 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets/month

Get Best Price
Highlight:

5000ml Green Tea Powder Packaging Machine

,

automatic powder packing machine CE ISO9001

,

Tea Powder Packaging Machine CE ISO9001

Material:
304SS
Usage:
100-5000ml Tea Powder Packaging Machine
Application:
Grean Tea Powder Packing Machine
Function:
Multi-Function Tea Powder Packaging Machine
Packing Products:
Automatic Food Powder Packaging Machine
Driven Type:
Pneumatic, Electric
Packaging Type::
Stand-up Pouch, Bags, Film, Pouch
Core Components:
Motor, PLC, Engine, Weighers
Model:
Milk Powder Packing Machine
Machine Type:
Powder Packaging Machine
Material:
304SS
Usage:
100-5000ml Tea Powder Packaging Machine
Application:
Grean Tea Powder Packing Machine
Function:
Multi-Function Tea Powder Packaging Machine
Packing Products:
Automatic Food Powder Packaging Machine
Driven Type:
Pneumatic, Electric
Packaging Type::
Stand-up Pouch, Bags, Film, Pouch
Core Components:
Motor, PLC, Engine, Weighers
Model:
Milk Powder Packing Machine
Machine Type:
Powder Packaging Machine
Automatic 100-5000ml Green Tea Powder Packaging Machine CE ISO9001

Automatic Powder Packaging Machine Tea Powder Packaging Machine 304 Stainless Steel Green Tea Powder Packaging Machine





1. Application

Suitable for food, pharmaceutical, cosmetic, pesticides, plastic products and special products in the industry, automatic packaging powder materials. Such as: food additives, milk powder, soy flour, protein powder, tea powder , the powder, mask powder, washing powder , detergent powder , pearl powder, coffee powder, cocoa powder, flour, health tea powder, glucose powder, soda powder.



2. Technical Parameter



Main machine parameter LC-420F LC-520F LC-720F LC-820F LC-920F LC-1050F
Speed 10-50bag/min 10-50bag/min 10-40bag/min 10-40bag/min 10-40bag/min 5-30bag/min
Bag-making size

(L)80-300mm*

(W)80-200mm

(L)80-350mm

(W)100-250mm

(L)100-500mm

(W)160-350mm

(L)100-500mm(W)200-400mm

(L)100-500mm

(W)220-450mm

(W)200-500mm (L)100-480mm,

film pulling twice 800mm

Bag-making type back sides sealing back sides sealing back sides sealing back sides sealing back sides sealing back sides sealing
Filling range 80-1000ml 150-2000ml 150-4000ml 150-5000ml 150-6000ml 1000-10000ml
Max film width 420mm 520mm 720mm 820mm 920mm 1050mm
Film thickness(0.04-0.08) 0.04-0.08mm 0.04-0.08mm 0.04-0.08mm 0.04-0.08mm 0.04-0.08mm 0.06-0.12mm
Air consumtion 0.3m³/min 0.65Mpa 0.3m³/min 0.65Mpa 0.3m³/min 0.65Mpa 0.3m³/min 0.65Mpa 0.3m³/min 0.65Mpa 750L/min 0.6×105Pa
Power 2.2KW/220V 50-60HZ 2.5KW/220V 50-60HZ 3KW/220V 50-60HZ 3KW/220V 50-60HZ 3KW/220V 50-60HZ 7.5KW/220V 50-60Hz
Machine size L1320*W950*H1360mm L1430*W1200*H1700mm L1716*W1260*H1820mm L1854*W1440*H2019mm L2014*W1574*H2095mm 2100×1450×2600mm
Machine weight 450kg 400kg 500kg 600kg 700kg 900kg







3. Technical Characteristics
1. Brand PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.





4. FAQ

Q1: How to find a Packing machine suitable for my product?

To Longchuang distinguished customers and friends , in order to we have an accurate and efficient communication, please kindly consult us and provide following details as possible as you could .

1-Packing products:

2-Packing weight:

3-Dimension of the bag:

4-Bag type:

5-Packing capacity:

6-Printer need or not ?

7-Is the product Moisture-prone?sugary?dusty?highly fluid?



If you have video or picture is very warm weclome.

For there are over 100 kinds of packing machine,different on bag sizes.

In order to recommend you the most suitable and best solution ,we need know these information.

Of course , if you are new and just start this business and don't have bag size , pls send us a sample picture or draft drawing)

, we can help you to find similar weight bag for your reference with our rich professional experience.




Q2: Can you send engineer service oversea?
Yes, and you need to pay some fee.
According to save your cost, we will send you a video of the installation of the machine.


Q3. How can we make sure about the machine's quality after we paid?
Before delivery, we will send you the pictures and videos of the machines.
And also you can visit our factory and test the machine.


Q4. We would like to have our own rand , is that ok ?

Yes, we accept OEM/ODM with your brand or your design.


Q5. Payment Method ?
1. 30% deposit, 70% before shipping.
2. We accept T/T, L/C etc.

Q6: Warranty
2 years for main parts after you received machines (Except the quick-wear parts)



Q7: About shipment:

You could designated freight logistics , we could also help for shipment by professionally .





5. Why Choose us ?

Automatic 100-5000ml Green Tea Powder Packaging Machine CE ISO9001 0

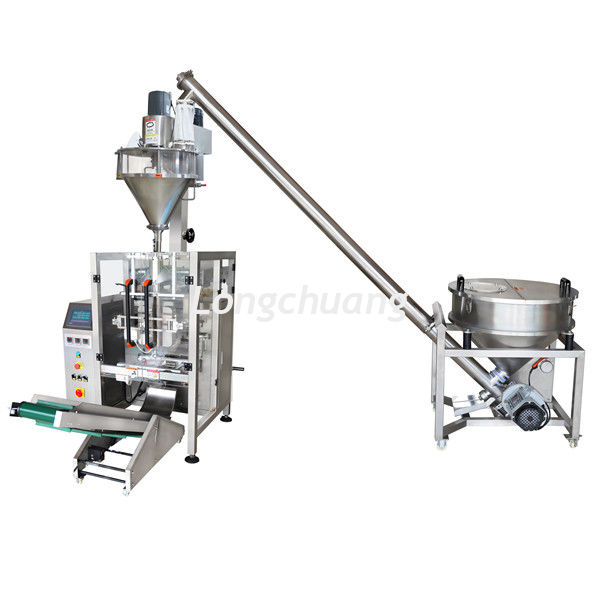

6.Machine pictures
