| Place of Origin: | China(Mainland), Guangdong |
|---|---|
| Brand Name: | SunChon |
| Certification: | CE Certification，SGS |
| Model Number: | SUN-520P |
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Two or Three Wooden Case |
| Delivery Time: | 12- 15 Days |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram, Cash |
| Supply Ability: | 200 Sets Per Month |
| Running Type: | Semi Automatic | Condition: | New |
|---|---|---|---|
| Volume: | 2000ml | Controller System: | PLC |
| Film Material: | Composite | Driven Type: | Electric |
| High Light: | flour packing machine,powder bagging machine |
||

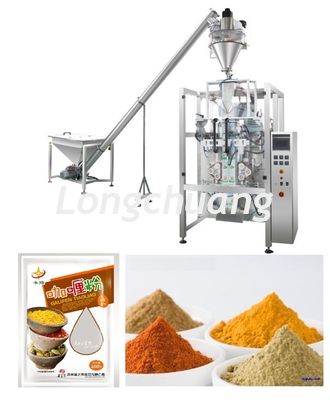

Vertical Automatic Vertical Garlic Powder Packing Machine
Features:
•Servo film transporting system can position accurately. High-quality synchronous transport membrane, which is stable and reliable.
•Schneider Touch Screen can have multiple versions such as English, Spanish,German,etc for you operate, convenient parameter setting.
•Self-diagnosis function, Fault is displayed at a glance.
•High-sensitivity fiber color tracking, so that the sealing position more accurate.
•Temperature independent PID control, it is better for a variety of materials coated.
•Dosing by high-precision Auger Filler. Accuracy is ± 0.5-1%.
Technical parameters:
| Item | SUN-520P |
| Bag Length | 80-400mm(L) |
| Bag Width | 150-250mm(W) |
| Film Width | 520mm |
| Packing Speed | 5-60bags/min |
| Volume | Max 2000ML |
| Air Pressure | 0.8mpa |
| Air Consumption | 0.5m³/min |
| Voltage | 2.2Kw 220V 50Hz |
| VFFS Dimension | 1500x1140x1540LxWxH MM |
| Weight | 550KG |
Description
The machine is suitable for filling and packing all kinds of powder and small grain material, such as milk powder, flour, coffee powder, chilli etc. It’s composed of servo motor, PLC and touch screen controller. It consisits of products hopper, auger filler, main packing machine and finished product conveyor.
Details

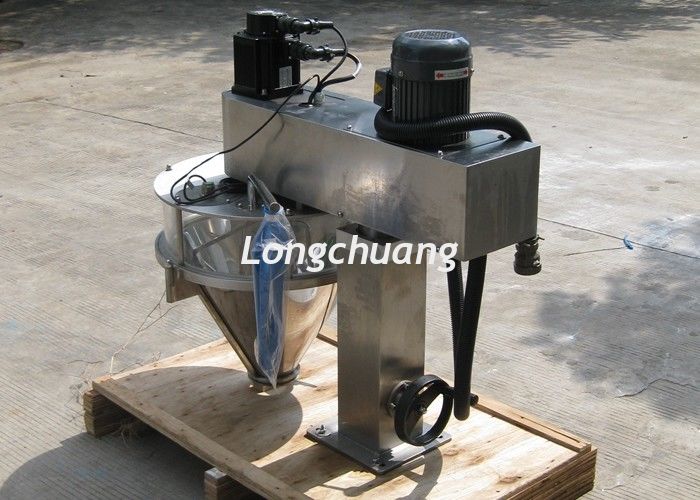

Screw Dosing Device
Filling, which adopts servo electric drive screw with accurate position, high precision, fast speed, big torque, long life, good stability.
Stir is adopted by maintenance-free motor of Taiwanese production. Low noise, long life and lifetime free warranty.
Finished Product Conveyor
It’ s used for conveying the finished products.
Screw Conveyor
The size and weight of the conveying material.
Use of conveying speed and height.
How can we make sure about the machine quality?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
