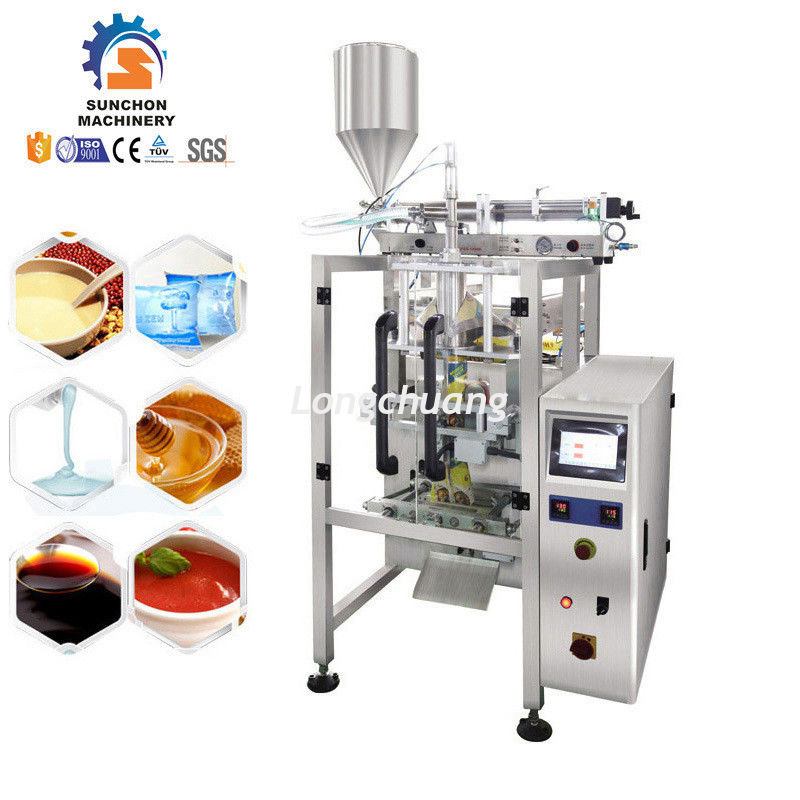

Butter / Tomato Paste/ Shampoo/ Honey/ Ketchup Liquid Packing Machine

Basic Information
Place of Origin: China
Brand Name: SUNCHON
Certification: CE/ISO9001/SGS
Model Number: SUN-420L
Minimum Order Quantity: 1 set
Price: $5000-10600
Packaging Details: wood case
Delivery Time: 15-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detail Information
Packing Speed: 5-70bag/Min Control System: Schneider PLC
Made Of: SS304 Bag Shape: Pillow Bag, 3/4 Seal Bag

Product Description

Butter / Tomato Paste/ Shampoo/ Honey/ Ketchup Liquid Packing Machine 0

>>Standard Features

  • Bag-making, sealing, packing, print date in one operation.
  • English and Chinese screen display, operation is simple.
  • PLC computer system, function is more stable, adjustment any parameters not need stop machine.
  • It can stock ten dispose, simple to change variety.
  • Double sever motors drawing film position accurately and the speed more fast.
  • Temperature independent control system precision get to ± 1°C.
  • Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
  • Packing type diversification, pillow sealing, standing type, punching etc.
  • Work circuinstance quiet, low noise.

>>Working Process:
The working processes include: The machine pull laminate packaging film to the pouch forming devices, and go through the vertical sealing plate, in the meanwhile, the dosing device dose the product into the pouch, then will do the horizontal sealing and cutting off. Above is the typical working process diagram.


>>Package material:

Suitable for packing for various kinds of liquid filling product, such as oli, shampoo, honey, water, ketchup, sauce, juice, milk, soysauce, tomato sauce,etc. packing.

Butter / Tomato Paste/ Shampoo/ Honey/ Ketchup Liquid Packing Machine 1

Butter / Tomato Paste/ Shampoo/ Honey/ Ketchup Liquid Packing Machine 2

Butter / Tomato Paste/ Shampoo/ Honey/ Ketchup Liquid Packing Machine 3

Machine Specification:


(We have several models. We can customize the suitable one for you according to your requiredment.Just Tell us : Weight or Bag.)

Modal SUN-320 SUN420 SUN520 SUN720
Measuring range 150-800ml 150-1500ml 150-2000ml 150-4000ml
Packaging speed 5-70bags/min 5-60bags/min 10-60bags/min 10-60bags/min
Bag width 50-150mm 60-200ml 80-250mm 100-350mm
Bag length 80-240mm 80-300mm 80-350mm 100-450mm
Film roll width Max.320mm Max.420mm Max.520mm Max.720mm
Film thickness 0.03-0.09mm
Film material OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film
Machine size(LxWxH) 1185*935*1245mm 1217*1015*1343mm 1488*1080*1490mm 1716*1260*1820mm
Machine weight 350kg 450kg 550kg 700kg



Machine detail


Butter / Tomato Paste/ Shampoo/ Honey/ Ketchup Liquid Packing Machine 4



Butter / Tomato Paste/ Shampoo/ Honey/ Ketchup Liquid Packing Machine 5



Foshan Sunchon Machinery Co.,Ltd is a leading manufacturer of packaging machine, and located in Foshan, is the company specialized in design and manufacturing of high performance packing solution.Our products includes vertical packing machine, horizontal packing machine, powder Packaging Machine, Grain Packaging Machine, Liquid Packaging Machine, and package production line. SUNCHON has successfully developed more than 80 kinds of packaging machines and related equipment, widely suitable for food, medicine, chemicals, Industry accessories, hardware and so on. In addition, our products are exported to over 50 countries, such as America, Russia, Malaysia, India, Africa, Italy, Germany, Saudi Arabia etc.


SUNCHON will not only supply the machine, as well as the complete packaging solution!


 Why choose us:

  • Over 18 years packing machine design&manufacturing experience
  • Top packing machine gold suppliers in Alibaba
  • 50 countries customers choices
  • Chief technical engineer with over 18 years experience
  • Professional team with passion and diligence


After-sale services:
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, telecom or online face to face communication available 24 hours.
3. SUNCHON engineers & technician Engineer available to serve machines for your countries.
4. The machine will have 1 year warranty of machine, 2 years warranty of electric part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
