| Place of Origin: | China(Mainland), Guangdong |
|---|---|
| Brand Name: | SunChon |
| Certification: | CE Certification |
| Model Number: | SUN-420L |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Wooden case |
| Delivery Time: | Within 20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash |
| Supply Ability: | 200 sets per month |
| Type Of Machines::: | Vertical And Pillow Packing Machine | Weighing: | Pump |
|---|---|---|---|
| Machine Usage: | Bag Making | New Condition: | Yes |
| Packaging Type:: | Bags | Machine Material::: | Stainless Steel Or Mild Steel |
| High Light: | automatic liquid packing machine,liquid automatic packaging machine |
||
Https://www.youtube.com/watch?v=-aq8BRZtVws
Pillow bag packing machine(red dates)
Https://www.youtube.com/watch?v=bgIBFM9BzCA
Volumetric cup packing machine (potato chips)
Https://www.youtube.com/watch?v=AqiAZramjX4
4 heads weigher powder packing machine

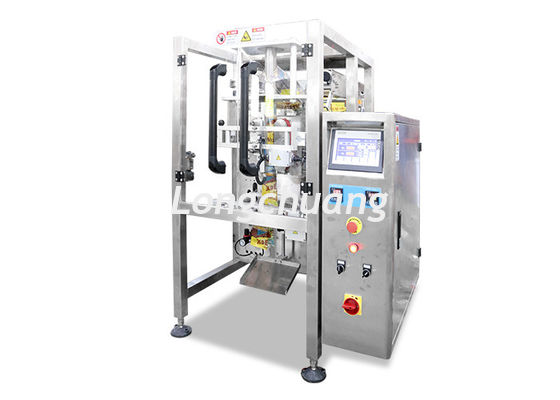

Made in China Automatic beverage drink packing machinery
This machine is suitable for automatic packaging of liquid of foods,medicine and chemicals, such as pesticide,shampoo,body foam bath lotion,facial cream,ingredient oil,fruit sauce, tomato ketchup and honey etc.
Principle Features
1. The use of unique bag length control technology, bag length stepless adjustable. Bag length is accurate, easy to adjust.
2. Intelligent temperature controller, thermostat can control the temperature of the heat seal to ensure that the quality of sealing.
3. Replace some parts. Can be achieved three side seal, four side seal, flat bag, pillow bag production.
4. Unique photoelectric positioning technology to ensure that the color of the standard bag design integrity.
5. The amount of packaging in the rated range stepless adjustable.
6. Automatically print the product batch number, easy to tear, easy to use.
7. The appearance of the machine generous, all stainless steel structure, in line with food and medical packaging health requirements, suitable for food, medicine and chemical industry.
Technical Parameters
| VFFS Machine Item | SUN-420 | OPTION |
| Packing Speed | 5-70 BAGS/MIN | Carbon or stainless steel Structure frame |
| Bag Making Size | Length: Max 60-300 MM Width: 80-200 MM | Date Printer |
| Filling Range | 1000ML | Exhaust Device |
| Packing Film Material | OPP/CPP PET/PE PET-AL/PE Lamination Film | Inflate Device |
| Width | Max 420MM | Punching Device (Hole/Euro Slot/ |
| Thickness | 0.04-0.09 MM | Gusseted Device |
| Diameter | Max | Special easy open knife shapes |
| VFFS Machine Power Supply | 220V,3.0Kw, 50Hz | |
| Dimension | 1320x920x1392 LxWxH MM | |
| Weight | 450 KG |
